2026-09-14

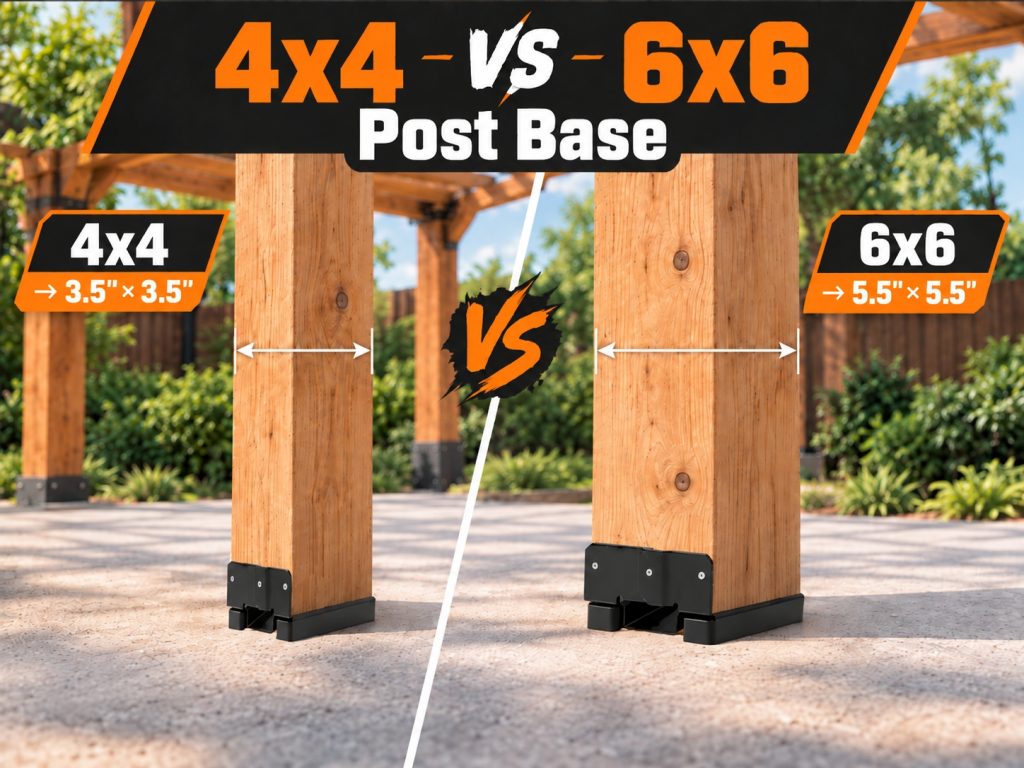

Choosing between a 4×4 vs 6×6 post base usually comes down to one thing: the actual size of your wood post.
A nominal 4×4 post is typically about 3.5″ × 3.5″, while a nominal 6×6 post is about 5.5″ × 5.5″. That difference may seem small on paper, but it matters when you are choosing a post base for a pergola, deck, porch, patio, or other outdoor project.
The good news is that the choice is fairly simple once you measure the post you plan to use.
| Feature | 4×4 Post Base | 6×6 Post Base |
|---|---|---|
| Nominal post size | 4×4 | 6×6 |
| Typical actual post size | 3.5″ × 3.5″ | 5.5″ × 5.5″ |
| Typical use | Smaller outdoor projects | Larger posts and projects |
| Concrete installation | Yes | Yes |
| Ground standoff | 1″ | 1″ |
| Steel thickness | 2mm | 2mm |
| Adjustable design | Yes | Yes |
| Finish options | Black E-Coated / White E-Coated / Silver Galvanized | Black E-Coated / White E-Coated / Silver Galvanized |
The biggest difference is the post size and base opening. The 4×4 option fits an actual 3.5″ × 3.5″ post, while the 6×6 option fits an actual 5.5″ × 5.5″ post.
The numbers 4×4 and 6×6 refer to the nominal size of the lumber. They do not usually represent the finished dimensions you measure with a tape measure.
For example:
This difference comes from the way dimensional lumber is manufactured and finished.
So, if you are holding a post that measures around 3.5″ on each side, look for a 4×4 post base. If it measures around 5.5″, look for a 6×6 option.
Don’t choose the bracket based only on the number printed on the lumber label. Measure the post first.
A 4×4 post base is a practical choice when your project uses nominal 4×4 wood posts.
Because the actual post size is around 3.5″ × 3.5″, the base is sized around that finished dimension.
A 4×4 post base can work well for projects such as:
For a smaller project, 4×4 posts can also make sense when you want a more compact post size and a smaller connection point.
If your post measures approximately 3.5″ × 3.5″, see the 4×4 Post Base for Concrete for the matching size option.
A 6×6 post base is designed for larger nominal 6×6 wood posts.
These posts typically measure about 5.5″ × 5.5″ after finishing. As a result, the corresponding post base needs a larger opening and mounting area.
You might consider a 6×6 post for:
A larger post does not automatically mean that a project is safer or stronger. The right post size depends on the structure, span, loads, connections, lumber, and local building requirements.
For that reason, don’t choose a 6×6 post simply because it looks more substantial. Use the size specified by your project design.
In general, a 6×6 wood post has more material than a 4×4 post. However, that does not mean you should automatically choose a 6×6 post base.
The post base must match the post you actually plan to install.
For example, putting a 6×6 post into a base intended for a 4×4 post will not give you the correct fit. Likewise, using a much larger base for a 4×4 post does not automatically improve the structure.
Instead, consider:
For structural projects, follow your plans or consult a qualified professional when necessary.
This is one of the most common mistakes when buying a post bracket.
A post may be sold as a 4×4, but its actual dimensions are usually smaller. The same applies to a 6×6.

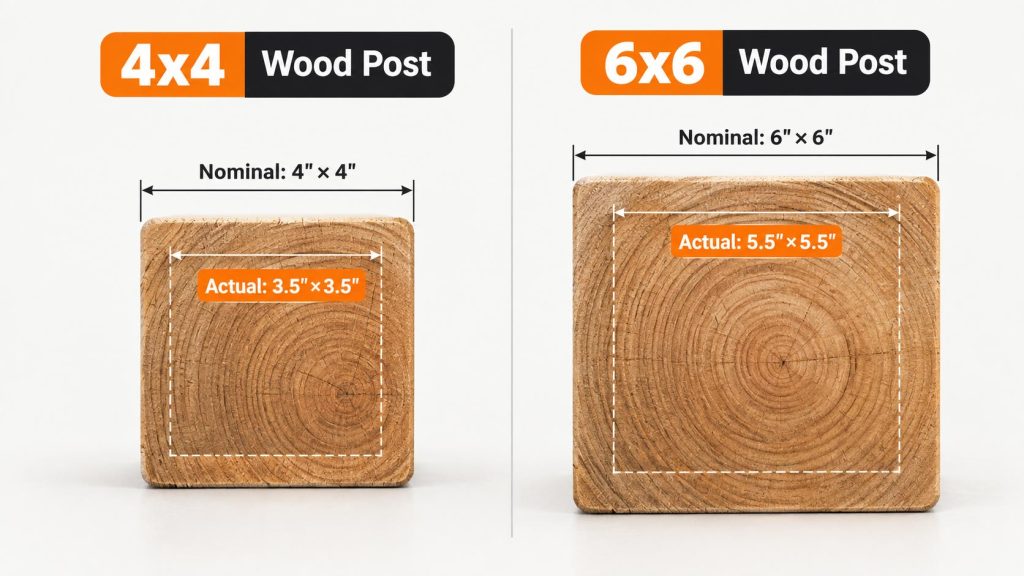

Nominal size:
4″ × 4″
Typical actual size:
3.5″ × 3.5″
Nominal size:
6″ × 6″
Typical actual size:
5.5″ × 5.5″
This is why product descriptions often list both dimensions.

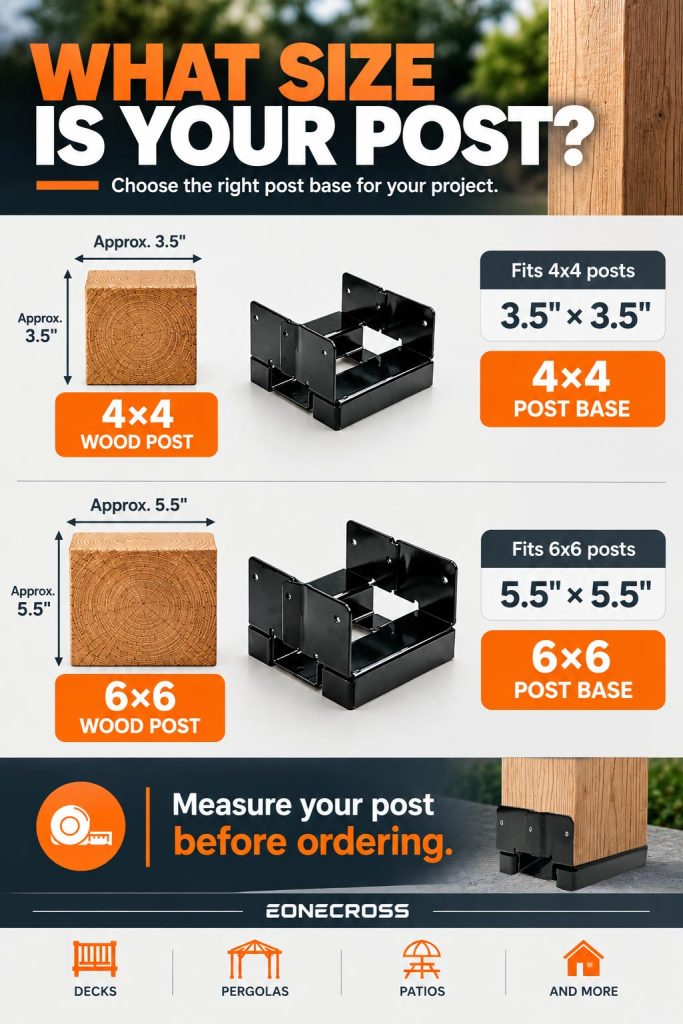

Before ordering a post base, grab a tape measure and check the post. It only takes a few seconds and can save you from ordering the wrong bracket.
If you’re still unsure, use this simple process.
Measure across the width and depth of the post.
If it measures around 3.5″ × 3.5″, you are likely working with a nominal 4×4 post.
If it measures around 5.5″ × 5.5″, you are likely working with a nominal 6×6 post.
If you’re building a pergola, deck, porch, or similar structure, check the required lumber size before buying the hardware.
Don’t change from 4×4 to 6×6 just because the larger post seems like a better option.
Look beyond the product title.
Check the actual opening size, standoff height, steel thickness, mounting holes, and included hardware.
Make sure the base and included hardware match your mounting surface and installation method.
The concrete condition also matters. Cracked, damaged, or unsuitable concrete may require a different installation approach.
Pergola projects are one of the most common situations where people compare 4×4 and 6×6 posts.
For a smaller pergola, a 4×4 post may fit the design. For a larger pergola, the plans may call for 6×6 posts.
However, there isn’t one correct post size for every pergola.
The overall structure matters. So do the post spacing, beam size, roof design, wind exposure, and local requirements.
The best approach is simple:
Choose the post size first. Then choose the matching post base.
If your plans call for 4×4 posts, use a 4×4-compatible base. If they call for 6×6 posts, use a 6×6-compatible base.

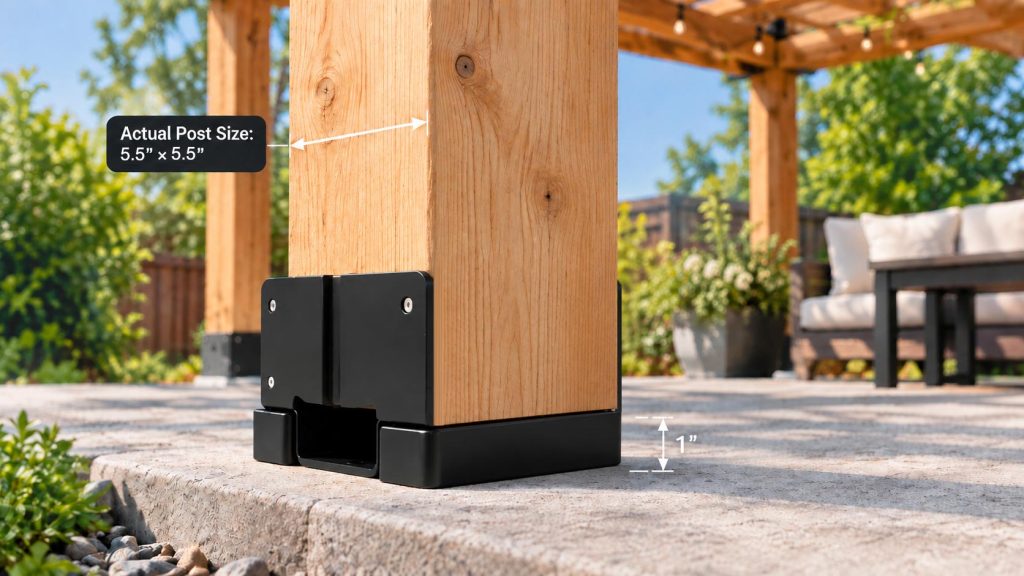

Both the 4×4 and 6×6 post base options use a 1-inch standoff.
The standoff raises the bottom of the wood post above the mounting surface instead of leaving the end of the post directly against the concrete.
That gap can help limit direct contact with moisture around the bottom of the post.
However, a post base is not a substitute for proper drainage or waterproofing. Water can still collect around a poorly drained installation.
For outdoor projects, keep the mounting area clean and make sure water can drain away from the post.
Finish can also affect which product you prefer visually.
The 4×4 and 6×6 post base options are available in:
The black and white versions use an e-coated finish. The silver version uses a galvanized finish.
If the hardware will be visible on a pergola or porch, the finish can be worth considering alongside the size.
For example, black hardware can work well with darker posts or modern outdoor designs, while white hardware may blend better with painted structures.
Not necessarily.
The post base size and the concrete connection are two separate considerations.
A 6×6 post base has a larger footprint than a 4×4 version, but the actual installation still depends on the concrete surface, anchor type, hole placement, edge distance, and project requirements.
Before drilling, check the installation instructions and confirm that the concrete can accept the selected anchors.
For an existing slab, also check for cracks or damage around the proposed mounting location.
Seeing “4×4” or “6×6” in a product title is not enough.
Always check the actual post dimensions.
This is probably the most common mistake.
A typical finished 4×4 measures about 3.5″ × 3.5″.
A larger bracket is not automatically better.
The base should match the post and the project design.
The height of the base matters, especially when you want to keep the bottom of the post away from the concrete surface.
The post base is only one part of the connection. The concrete condition and anchor installation also matter.
Here’s the quick answer:
Choose a 4×4 post base if your project uses a nominal 4×4 post measuring approximately 3.5″ × 3.5″.
Choose a 6×6 post base if your project uses a nominal 6×6 post measuring approximately 5.5″ × 5.5″.
If you’re replacing an existing post, measure it before ordering. If you’re starting a new build, check the project plans first.
The goal isn’t to choose the biggest bracket. It’s to choose the correct post base for the post and the project.
EONECROSS offers both sizes for projects that require a post-to-concrete connection.
The 4×4 post base fits posts with an actual size of approximately 3.5″ × 3.5″ and uses a 1″ standoff.
The 6×6 post base fits posts with an actual size of approximately 5.5″ × 5.5″ and also uses a 1″ standoff.
Both use 2mm steel and an adjustable design. Choose the size based on your actual post dimensions and project requirements.
If your project uses nominal 4×4 posts, see our 4×4 post base for concrete.
For projects using nominal 6×6 posts, our 6×6 post base for concrete provides the larger matching option.
No. A typical finished 4×4 wood post measures about 3.5″ × 3.5″. Always measure your lumber before selecting a post base.
No. A typical finished 6×6 wood post measures about 5.5″ × 5.5″.
Match the base to the post size required by your project. A nominal 4×4 post typically uses a 4×4 base, while a nominal 6×6 post typically uses a 6×6 base.
You should use a base designed for the actual post dimensions. A 6×6 base is intended for a larger post, so it is not the correct choice simply because it provides a larger opening.
Not necessarily. Check the product specifications for the exact model. The EONECROSS 4×4 and 6×6 options discussed here both use a 1-inch standoff.
They can be used for suitable pergola projects when the post size, base dimensions, anchors, and overall structure are appropriate. Follow your project plans and local building requirements.
A typical 4×4 wood post measures approximately 3.5″ × 3.5″.
A typical 6×6 wood post measures approximately 5.5″ × 5.5″.
Choosing between a 4×4 and 6×6 post base doesn’t have to be complicated.
If you’re comparing more post sizes, our post base size guide covers 4×4, 6×6, 8×8, 10×10, and 12×12 options.
Start with the wood post. Measure it, check the project requirements, and then choose the matching base.
For a typical 4×4 post, look for a base that fits approximately 3.5″ × 3.5″ lumber. For a typical 6×6 post, look for one that fits approximately 5.5″ × 5.5″ lumber.
That simple measurement can help you avoid ordering the wrong size and make the installation process much easier.
